Materials
- 316L stainless steel / CF3M - product form to be confirmed
- Brass C36000
- PVC
- PVDF
- Stellite-faced inserts
VFC
Uniform circular impact
Full cone spray nozzles

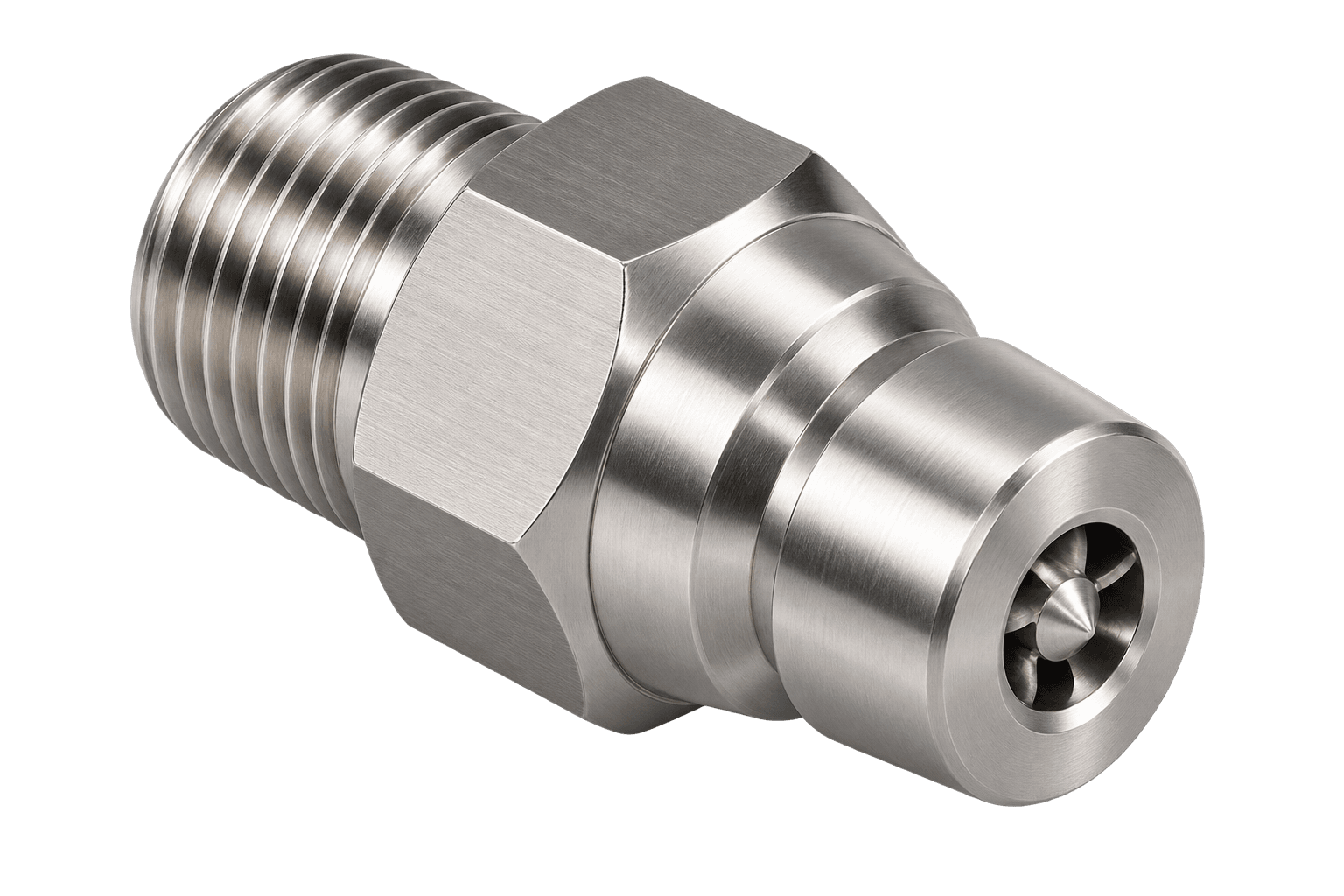

Full cone architecture for process cooling, washing and contact duties requiring distributed impact across a circular area.
Document stateEngineering reviewSource CLIENT-002
Pre-release technical dataDo not use these values for procurement, installation or safety decisions until an approved Veylcore datasheet is issued.
Spray behavior
Selection basis
Uniform circular impact distribution across the cone pattern with a medium-to-coarse droplet spectrum.
Client draft describes a vane design with open flow passages. Patent status and clogging performance require supporting records before release.
Client-supplied master / revision 0
Series range
| Model | Orifice | K factor metric / US | Pressure range | Flow at 3 bar | Angles |
|---|---|---|---|---|---|
| VFC-050 | 1.2-3.2 mm | 0.82 / 5.6 | 0.5-10 bar / 7-150 psi | 1.4-4.5 L/min | 60 / 90 / 120 deg |
| VFC-100 | 3.5-6.5 mm | 3.10 / 21.2 | 0.5-14 bar / 7-200 psi | 5.2-18 L/min | 60 / 90 / 120 deg |
| VFC-200 | 6.8-12 mm | 12.50 / 85.5 | 1-20 bar / 15-300 psi | 21.5-78 L/min | 60 / 90 / 120 deg |
Temperature
Client draft: metallic variants up to 400 C; PVDF variants up to 120 C. Assembly-level pressure/temperature derating is pending.
Connections
Client draft: 1/8 in to 2 in NPT or BSPT, male or female.
Release control
Open engineering checks
- Family-level K factors do not uniquely define the supplied flow ranges.
- Metric/US K-factor conversion requires correction and a declared unit convention.
