Flat fan high-impact nozzles

Flat spray geometries for cleaning, cooling and header arrangements where impact and controlled overlap govern selection.

Document stateEngineering reviewSource CLIENT-002

Pre-release technical dataDo not use these values for procurement, installation or safety decisions until an approved Veylcore datasheet is issued.

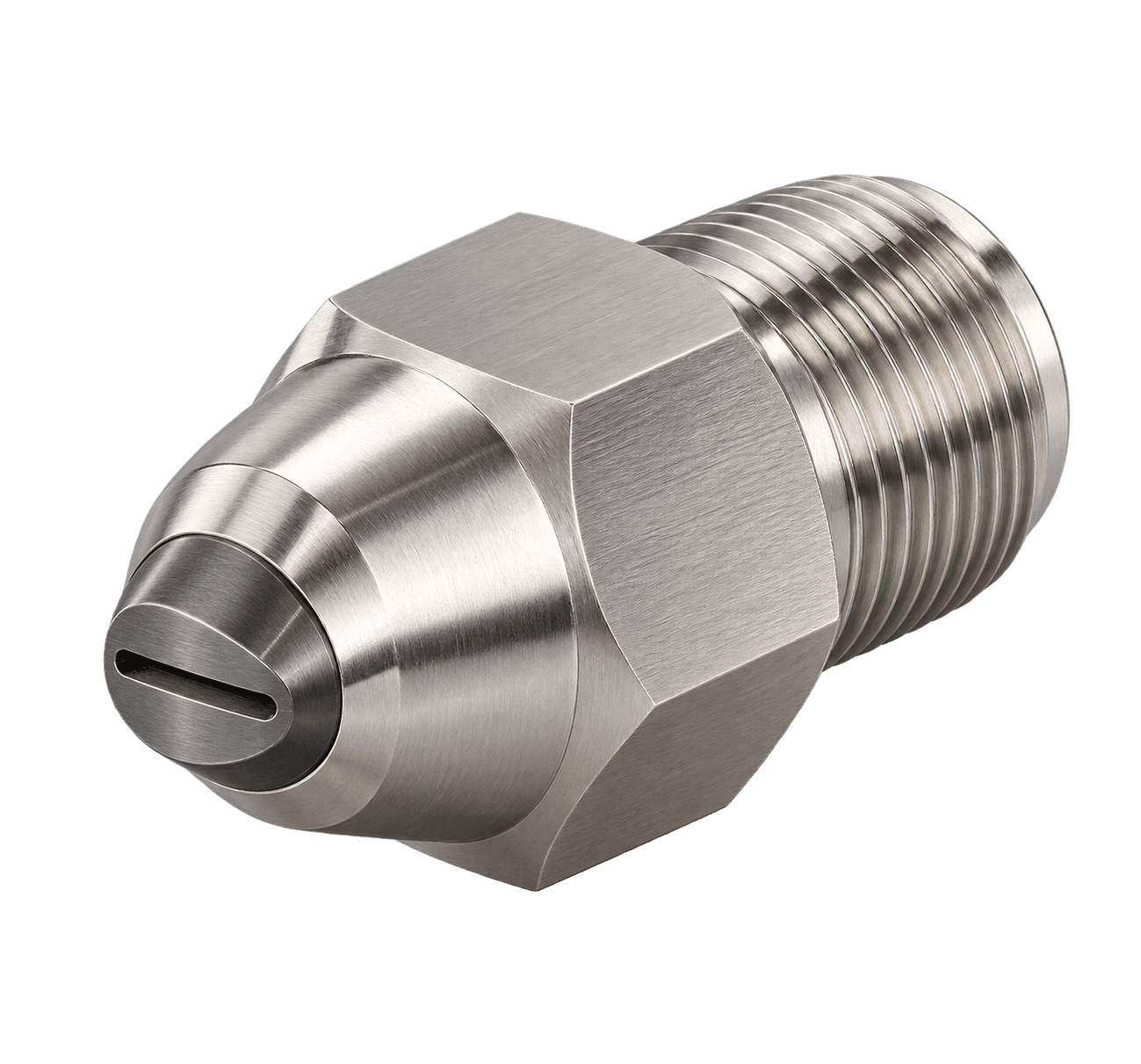

Concept product render for Veylcore Series VFF — Concept visualization · final production geometry may differ

Dimension-neutral concept drawing for Veylcore Series VFF — Drawing VFF-CONCEPT-R0 · NTS · Not for manufacture

Spray behavior

Selection basis

Client draft describes a parabolic flat-fan distribution with tapered edges for overlapping header layouts.

Target applicationsSurface preparationMetal washingIndustrial cleaningParts washingConveyor coolingPCB wet processing

Client-supplied master / revision 0

Series range

Model	Capacity size	K factor metric / US	Pressure range	Flow at 3 bar	Angles
VFF-15	015-100	0.58 / 3.96	1-35 bar / 15-500 psi	1-5.9 L/min	0 / 15 / 30 / 45 / 65 / 90 / 110 deg
VFF-30	120-390	2.32 / 15.8	1-40 bar / 15-600 psi	4-24 L/min	30 / 60 / 90 / 110 deg

Construction

Materials

Hardened 420 stainless steel
316L stainless steel
Tungsten-carbide inserts
Brass

Operating envelope

Temperature

Client draft: metallic variants up to 300 C. Pressure derating and seal-free/sealed construction limits are pending.

Interfaces

Connections

Client draft: 1/8 in, 1/4 in, 3/8 in and 1/2 in NPT or BSPT male.

Release control

Open engineering checks

Impact-force definition, target distance and test method must be added.
Capacity codes require a model-level mapping to orifice, flow and angle.
